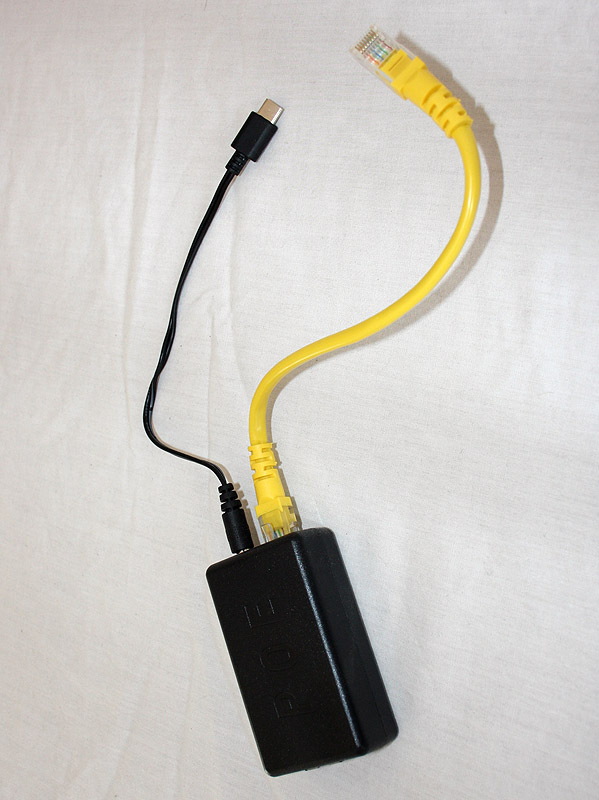

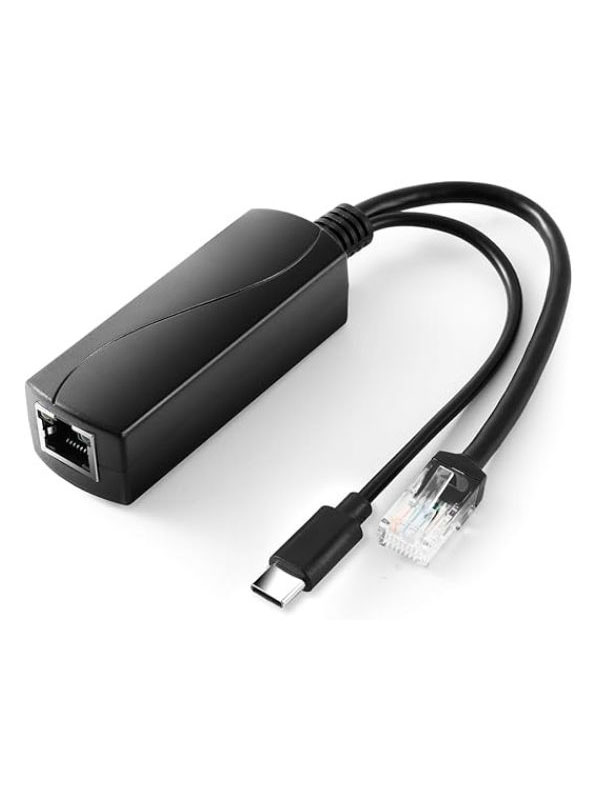

PoE Power Supply
Power over Ethernet (PoE) to USB-C power supply for use with any SMEMA Adaptor Family products;
Provides the neatest solution to run both Power and Data to the SMEMA Adaptor on the production line.
Requires a PoE injection source (Power Injector) which can be purchased separately if your network switch does not currently support PoE.
- Manufacturer
- REVODATA
- MPN
- TYPEC0504G
- Transfer Rate
- 10/100/1000Mbps
- Power
- Input 48V DC/0.6A, Output 5V/4A
- Standard
- IEEE802.3 af/at
- Pin Out
- 1/2(+),3/6(-);4/5(+),7/8(-)
- Interface Type
- 1 Input RJ45 port, 1 output RJ45 port, 1 DC output（Type-C）
- Standard
- IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at
- LED
- Yellow PoE lamp
- Temperature
- Work within -20~50°,Storage within -30~60°
- Humidity
- Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
- Size
- 27.5 x 2.8 x 2.3 cm (L*W*H)
- Colour
- Black
